Features

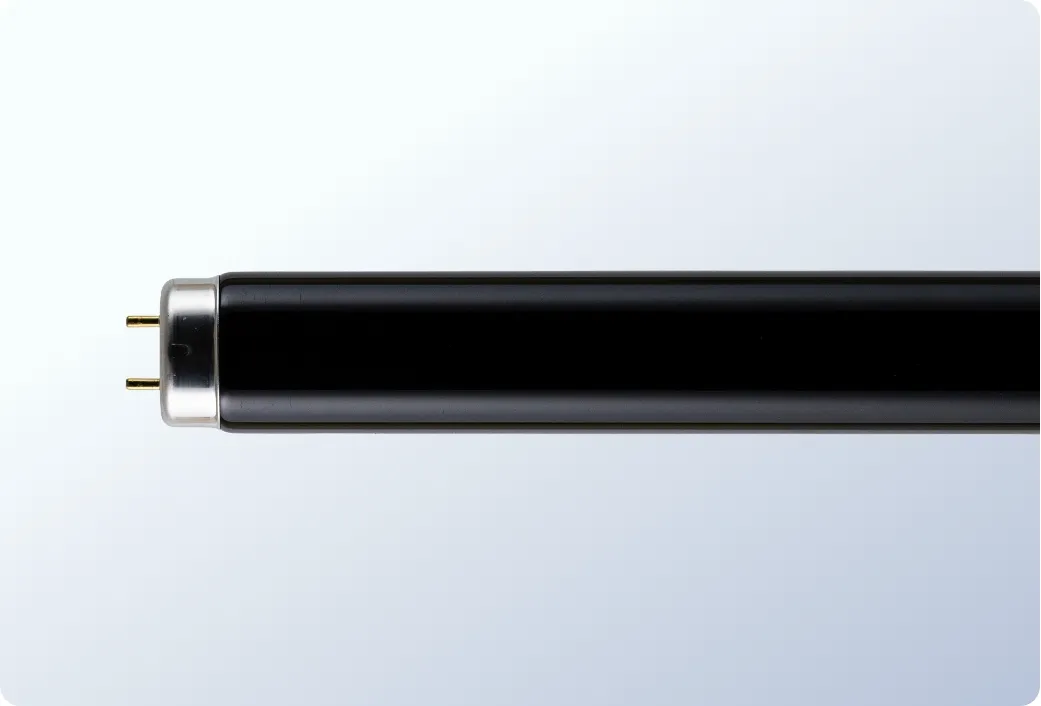

These lamps  emit highly concentrated radiation between 315 nm and 400 nm.
By using different phosphors, we can offer BL lamps with two distinct peak wavelengths, both around 360 nm.
They are used for trapping insects, photosensitization and photochemical reactions.

Products

Type Lamp Wattage Dimensions(mm) Cap Mercury contains Product Image
(JPG)
Spec Sheet
(PDF)

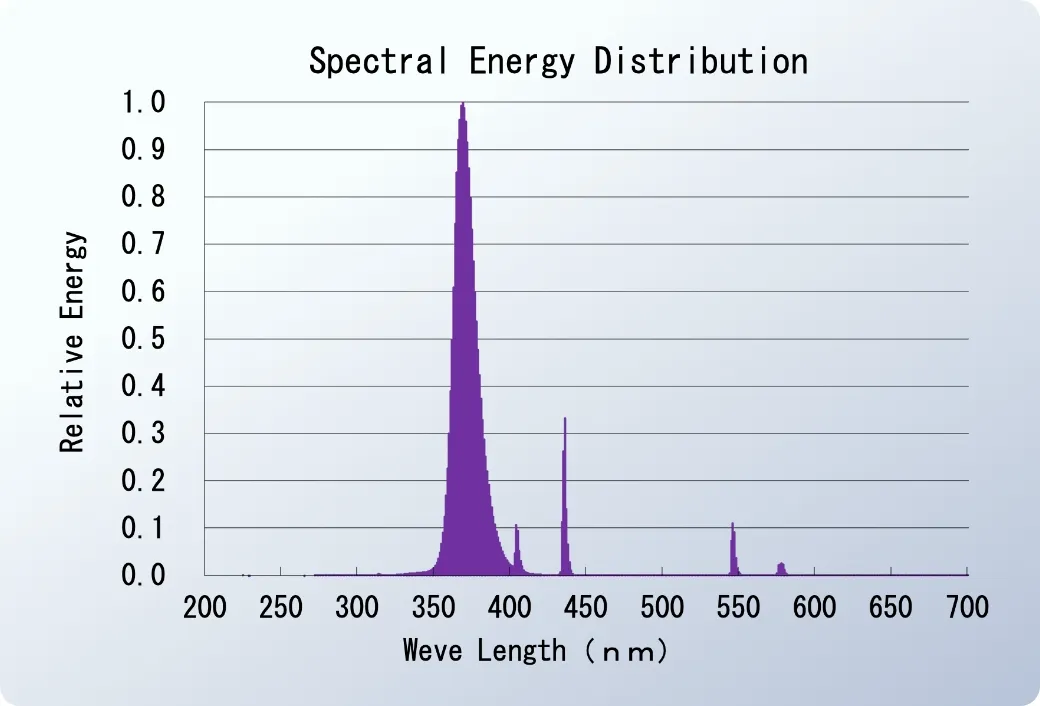

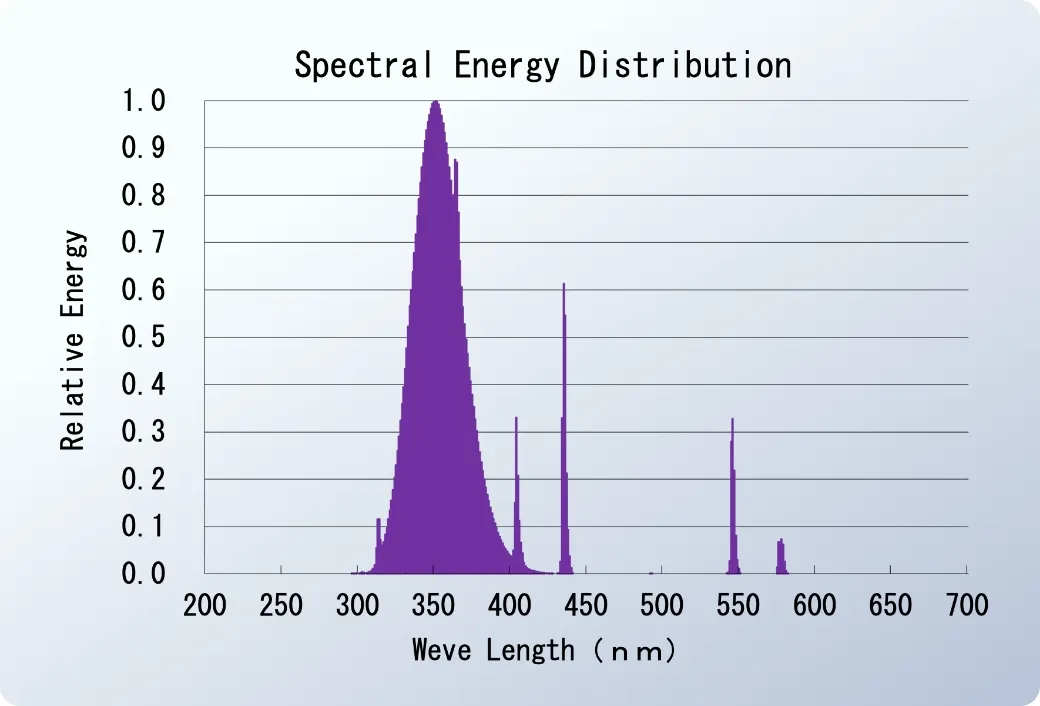

Spectral Energy Distribution
(PDF)

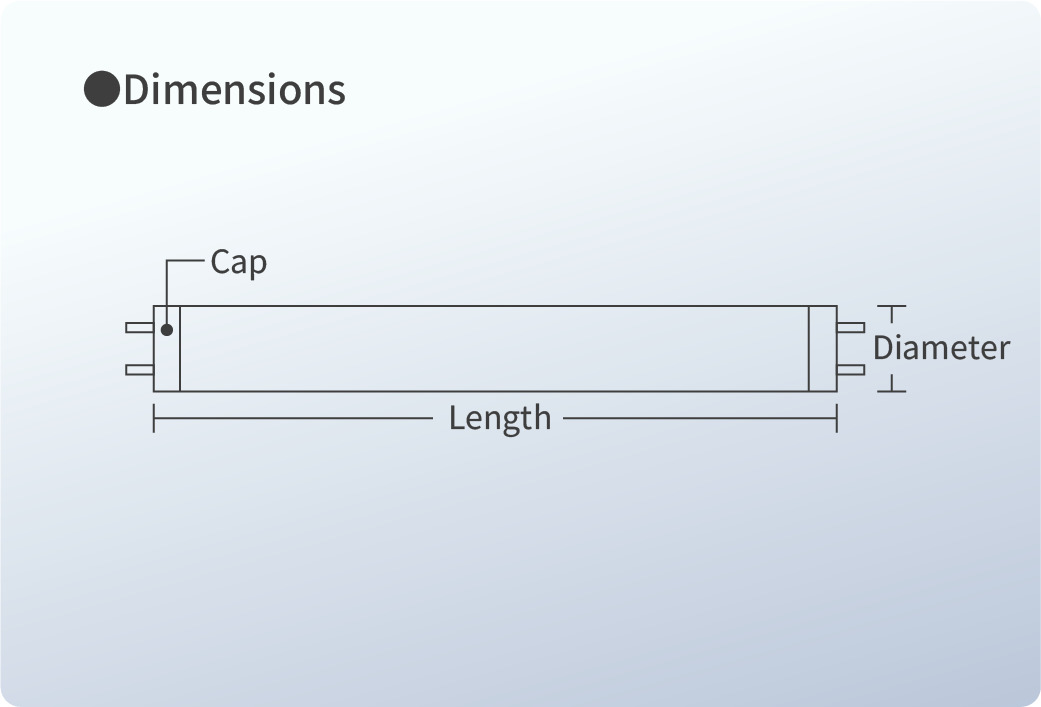

(W) Length Diameter
F4T5BL 352nm 4.6 134.5 15.5 G5 Yes
F6T5BL 352nm 5.9 210.5 15.5 G5 Yes
F8T5BL 352nm 7.9 287 15.5 G5 Yes
F10T8BL 352nm 9.5 330 25.5 G13 Yes
F15T8BL 352nm 14.7 436 25.5 G13 Yes
F20T10BL 352nm 19.0 588.5 32.5 G13 Yes
F30T8BL 352nm 30.5 893 25.5 G13 Yes
F4T5BL 368nm 4.6 134.5 15.5 G5 Yes
F6T5BL 368nm 5.9 210.5 15.5 G5 Yes
F8T5BL 368nm 7.9 287 15.5 G5 Yes
F15T8BL 368nm 14.7 436 25.5 G13 Yes
F20T10BL 368nm 19.0 588.5 32.5 G13 Yes
  • ※Product specifications are subject to change without notice.
  • WARNING:Use protective eyewear when operating a UV-A lamp up close for long periods.(This may cause eye pain or vision issues)
