Features

Compact UV-C Lamps efficiently emit a large amount of ultraviolet rays at 253.7nm (nanometers) which have an excellent disinfection effect. While they have the same wavelength and effects as general UV-C lamps, their structure, which connects straight tubes in parallel, allows for the required UV-C output with a shorter tube length.

A variety of high-output, is available with different sizes, shapes and ultraviolet ray output so that the most appropriate one can be selected according to the purpose.
The lamps are primarily useful for sterilization of air, the surfaces of various materials and water or liquid.

Products

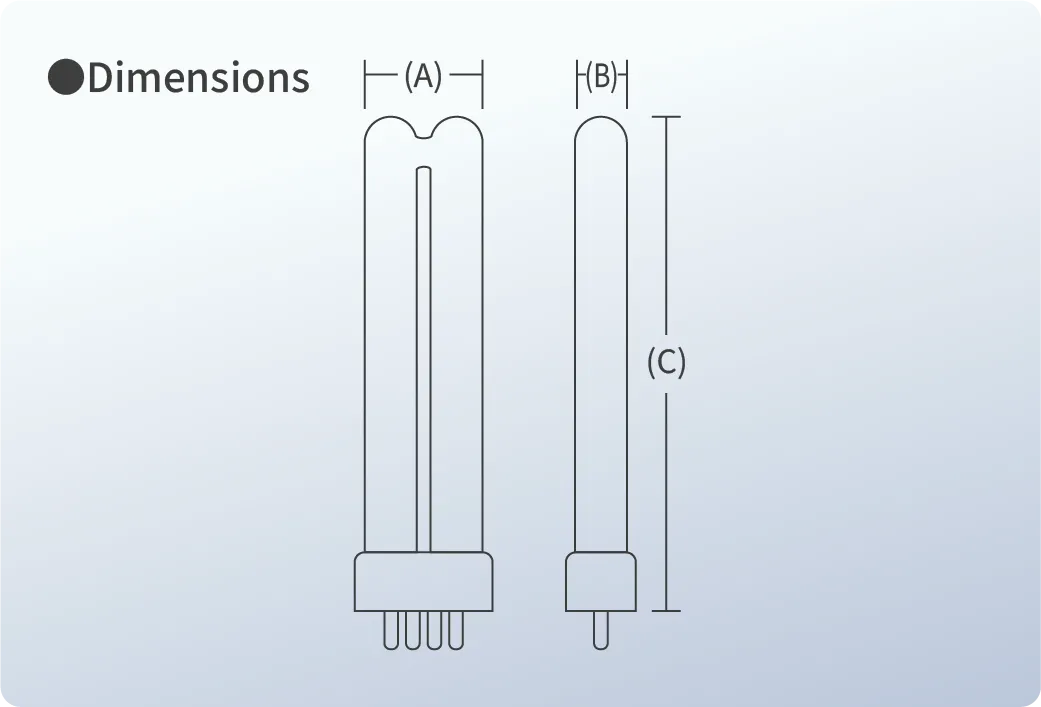

Type Lamp Wattage Dimensions(mm) Cap Mercury contains Product Image
(JPG)
Spec Sheet
(PDF)
Spectral Energy Distribution
(PDF)
(W) (A)
max
(B)
max
(C)
max
GPL18K 18.0 40 20 225 2G11 Yes
GPL24K 24.0 40 20 320 2G11 Yes
GPL36K 36.0 40 20 415 2G11 Yes
GPL55K 55.0 40 20 533 2G11 Yes
  • ※Product specifications are subject to change without notice.
  • WARNING:The radiation of those lamps is harmful to eyes and skin. Protect your eyes and your skin against the ultraviolet rays.
